Shop Drawings and Approvals Before Custom Cabinets Are Built

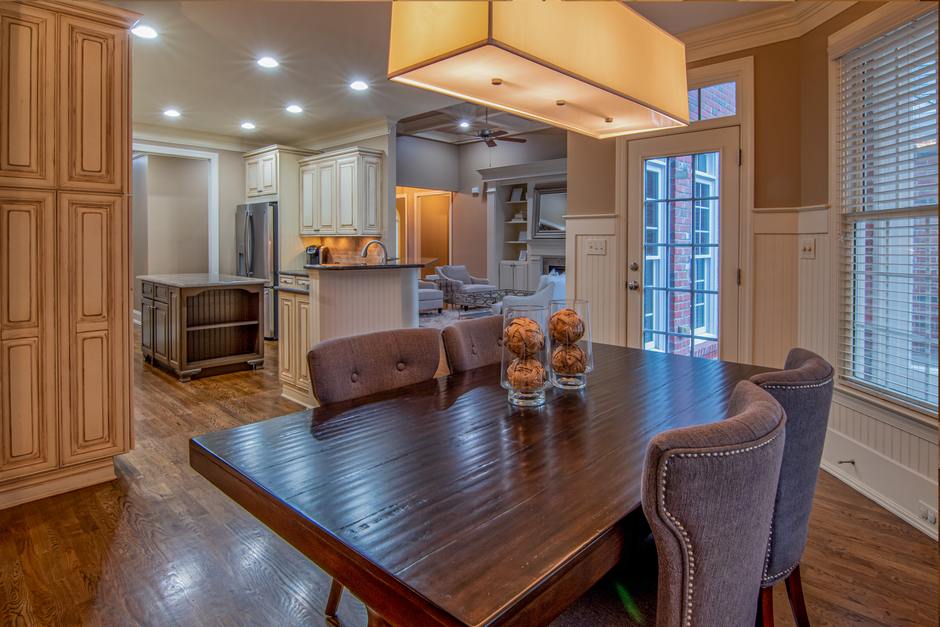

Bright room with a wooden table and chairs beside plain painted walls.

Most people sign a shop drawing after a glance at the door style and never check the dimensions against the room. That is the step where mistakes get locked in, and custom cabinets austin tx sourire espoir sets the approval ahead of any cutting for exactly that reason on work in Austin, TX. A cabinet shop builds from the signed sheet, so the sheet has to match the walls.

What the drawing shows

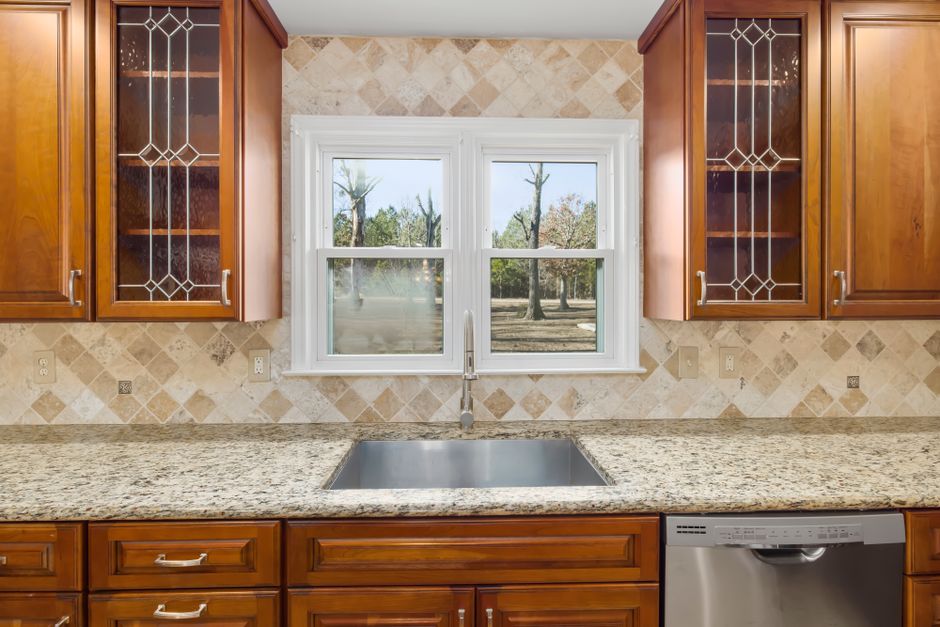

Sleek kitchen interior featuring wooden cabinets and a central window view.

A shop drawing has a plan view from above, an elevation of each wall, and a section cut through a cabinet to show the construction. The plan shows each carcass width and where it meets a wall or an appliance. Elevations show door and drawer layout, overlay, face frame or frameless construction, and the spacing of every reveal. Notes list the species, the finish, and the hardware.

Dimensions taken from the site

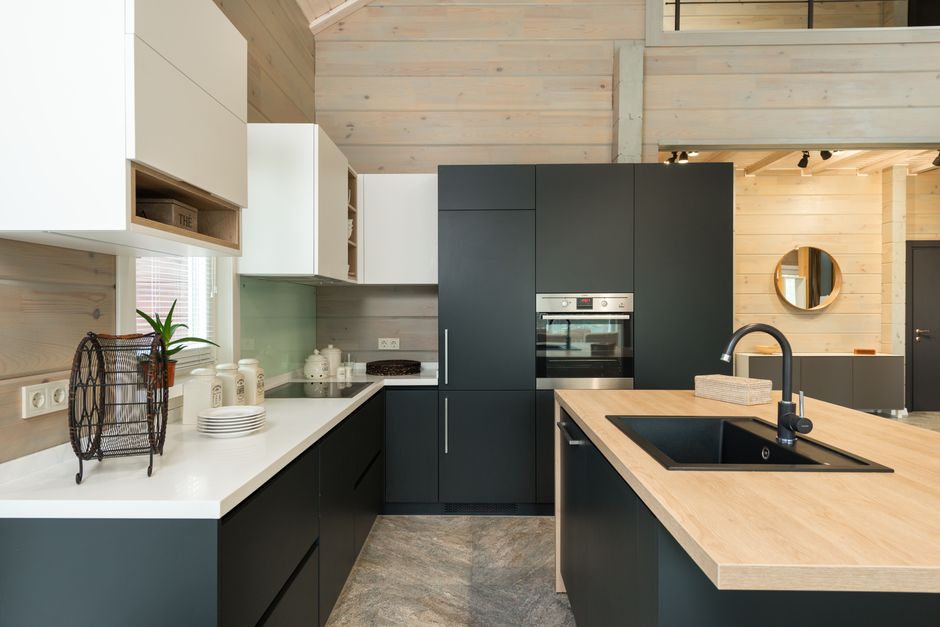

Interior of stylish kitchen with minimalist black and white cabinets built in oven and stove with sink in counter

The numbers come from a site measurement, not the architect's plan. Older houses near Hyde Park or Mueller's newer blocks will differ from the print by a half inch or more, and the drawing records the real wall lengths at counter height and at the ceiling. Plumb and level readings are noted so the scribe allowance is built in.

Checking the drawing against the room

A homeowner can tape the cabinet outline to the floor and wall with painter's tape, then open the door with a hand to see the swing. Appliance widths, window trim, outlet locations and the handle of a refrigerator door are all checked against the sheet. Opening direction for each door, the number of drawers, and the position of a hinge near a corner are the items most often changed at this stage.

Species, finish and hardware callouts

The drawing names the wood, such as white oak or maple, the finish, such as stain with lacquer, and the hardware, such as a euro hinge or soft close slide. A finish sample is held against the drawing so the color is judged in the room's own light and not under a shop bulb. A door style such as shaker or raised panel is drawn to scale so the rail widths can be seen.

What a change costs in time

Once the drawing is approved, the cut list follows from it. Move one drawer and the box width changes, the drawer slide order changes, and the face frame pieces change. A change before approval is an eraser mark, and a change after approval means recutting parts and often waiting on a second finish pass. For that reason the approval is a signature on a set of numbers, taken after the room has been rechecked once more.
